General relativity ranks as the best description of how the universe behaves. It explicitly incorporates the principle that the laws of physics never change throughout both space and time.
Proving the reliability of general relativity to precisely describe the dynamics (movements) of massive bodies in the universe is fundamental to establishing the space-time theorems.1 The cascading implications continue from there. These theorems prove the beginning (creation) of space and time. The creation of space and time implies the existence of a Creator beyond space and time, which uniquely describes the God of the Bible.
Such theological significance has prompted astronomers and physicists to subject general relativity to rigorous, exhaustive testing. Even though general relativity currently ranks as the most exhaustively tested and best-proven principle in physics, astronomers and physicists feel compelled by its philosophical implications to subject it to even more stringent tests.
In the last month, three research teams have taken two important tests of general relativity to much higher degrees of confirmation. The first such test is a sophisticated version of Galileo Galilei’s famous drop test. Galileo’s student Vincenzo Viviani reported that in 1590±1 AD, Galileo dropped two spheres of different masses from the top of the Leaning Tower of Pisa (see image below) and proved that both masses fell at the same rate.
Figure 1: Leaning Tower of Pisa Where Galileo Proved Gravity Causes All Objects to Fall at the Same Rate. Image credit: Saffron Blaze, Wikipedia Commons
Equivalence Principle Test
All viable theories of gravity predict that objects of different masses, independent of air resistance, will fall at the same approximate rate. General relativity, however, predicts that the rates will be exactly equivalent. Physicists call this the equivalence principle.
Galileo proved the equivalence principle to about 1 part in 100. The best laboratory experiments establish the equivalence principle to about 2 parts in 10 trillion.2 We’ve come a long way since Galileo in terms of establishing the accuracy of the equivalence principle. A similar limit was achieved using lunar laser ranging measurements that showed a lack of differential acceleration between the Moon and Earth toward the Sun.3
On April 25, 2016, the Centre National d’Études Spatiales (CNES), France’s space agency, launched the MICROSCOPE satellite. On board the satellite were two accelerometers (see image below). In one of the accelerometers was a cylinder made of an aluminum-titanium alloy. In the other was a cylinder made of a much denser platinum-rhodium alloy.

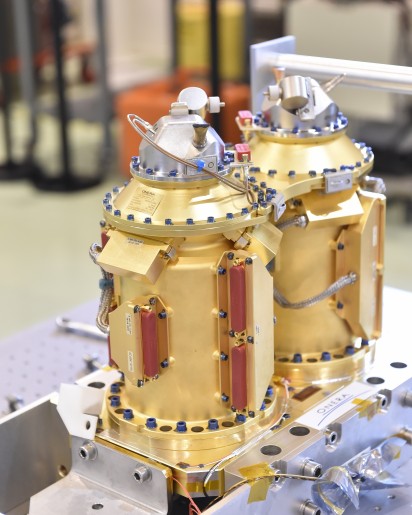

Figure 2: Twin Space Accelerometer for Gravity Experiment (SAGE) Payload Canisters. Image credit: Centre National d’Études Spatiales (CNES)
As the satellite orbits Earth, the two cylinders are in continuous free fall. Electrodes keep the cylinders centered inside the accelerometers by applying tiny voltages to the cylinders. These voltages were accurately measured to determine if there are any differences between the two applied voltages. After more than 1,500 orbits the MICROSCOPE mission research team found no such differences. In a preprint accepted for publication in Physical Review Letters the research team comprised of forty-four physicists from France, Germany, Netherlands, and the United Kingdom reported that the lack of such differences established the equivalence principle to 1 part in 100 trillion.4 This measure is a factor of 20 times superior to the best previous test.
The MICROSCOPE satellite is scheduled for at least another 900 orbits. By then, the MICROSCOPE mission research team hopes to test the equivalence principle to 1 part in a quadrillion. A proposed Italian satellite would push the test to 1 part in 100 quadrillion. Stanford University physicists have proposed a satellite featuring noise-reducing cryogenics that would yield a test accurate to 1 part in a quintillion.
Is all this testing necessary? Lay readers may wonder, how much more testing of the equivalence principle does general relativity require beyond Galileo’s drop test experiments? While the overall validity of general relativity is affirmed by astronomers and physicists, several of them speculate about tiny adjustments to general relativity, some of which have significant philosophical consequences. Therefore, placing more stringent limits on such possible adjustments has implications for science, philosophy, and theology.
Lorentz Invariance Tests
General relativity also predicts a fundamental symmetry known as Lorentz invariance. Lorentz invariance, named after early twentieth century Dutch physicist Hendrik Lorentz, states that the laws of physics are invariant under a transformation between two coordinate frames moving at constant velocity with respect to one another. To put it simply, it means that physical measurements will not depend on either the speed or the orientation of the laboratory’s reference frame. To put it even more simply, it says that while the universe is not invariant, the laws of physics are.
Two research teams using independent methods have now put the most stringent constraints on possible violations of Lorentz invariance. Three physicists at Carleton College, Minnesota, used superconducting gravimeter measurements to test local Lorentz invariance.5 Specifically, they looked for local gravitational acceleration by carefully measuring the position of a superconducting sphere levitated in a magnetic field. (You can watch such an experiment here.) Compared to the previous best gravimeter results, the Carleton College team determined upper limits on possible violations of Lorentz invariance that were more than 10 times smaller.
The second research team comprised of six physicists and astronomers from the University of Bologna, Italy, the Paris Observatory, and the University of California, Los Angeles, analyzed 48 years of data from lunar laser-ranging experiments.6 These experiments involve laser beams from Earth being bounced off mirrors placed on the Moon’s surface by Apollo 11 and 14 astronauts (see figures 3 and 4 below) to accurately measure the Moon’s orbital and rotational motions. This team placed upper limits on possible violations of Lorentz invariance that were 100–1,000 times better than the previous best determinations.

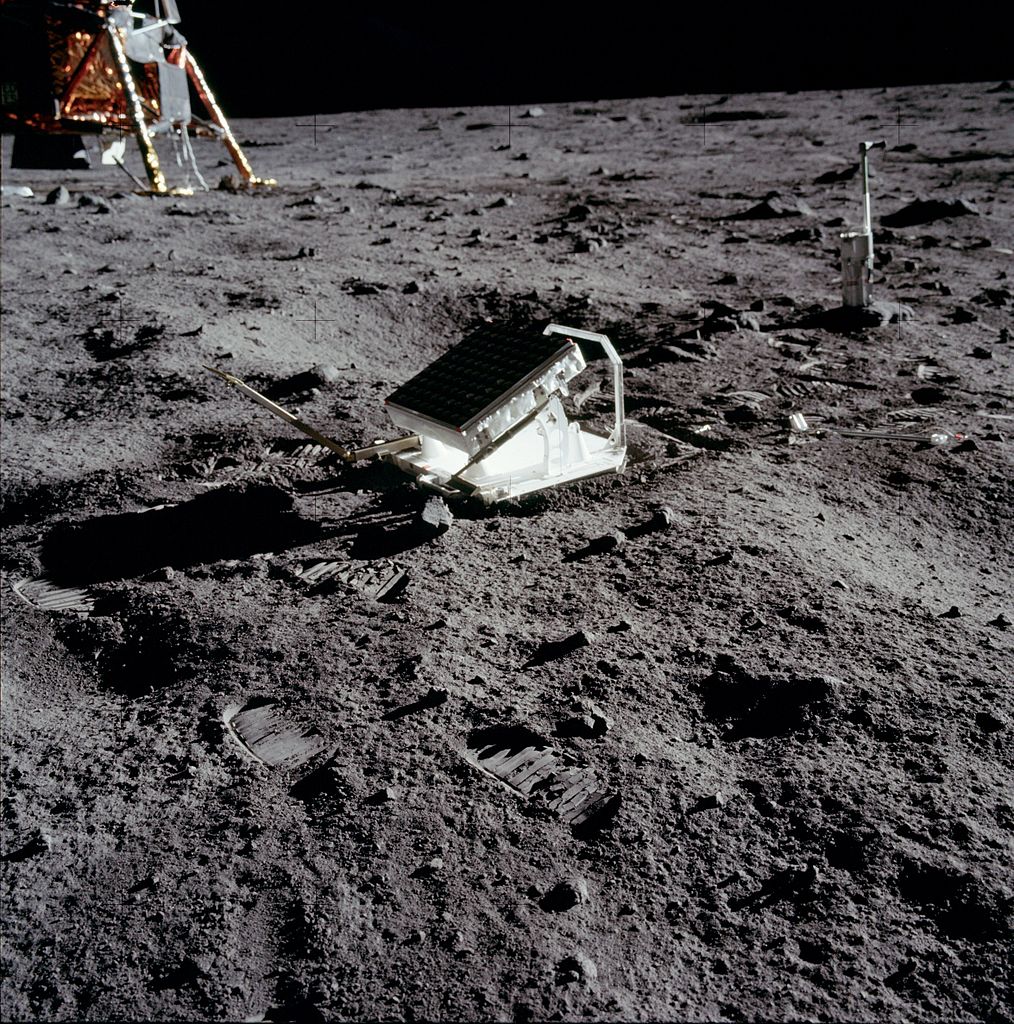

Figure 3: Lunar Laser Reflector Placed on the Moon by Apollo 11 Astronauts. Image credit: NASA

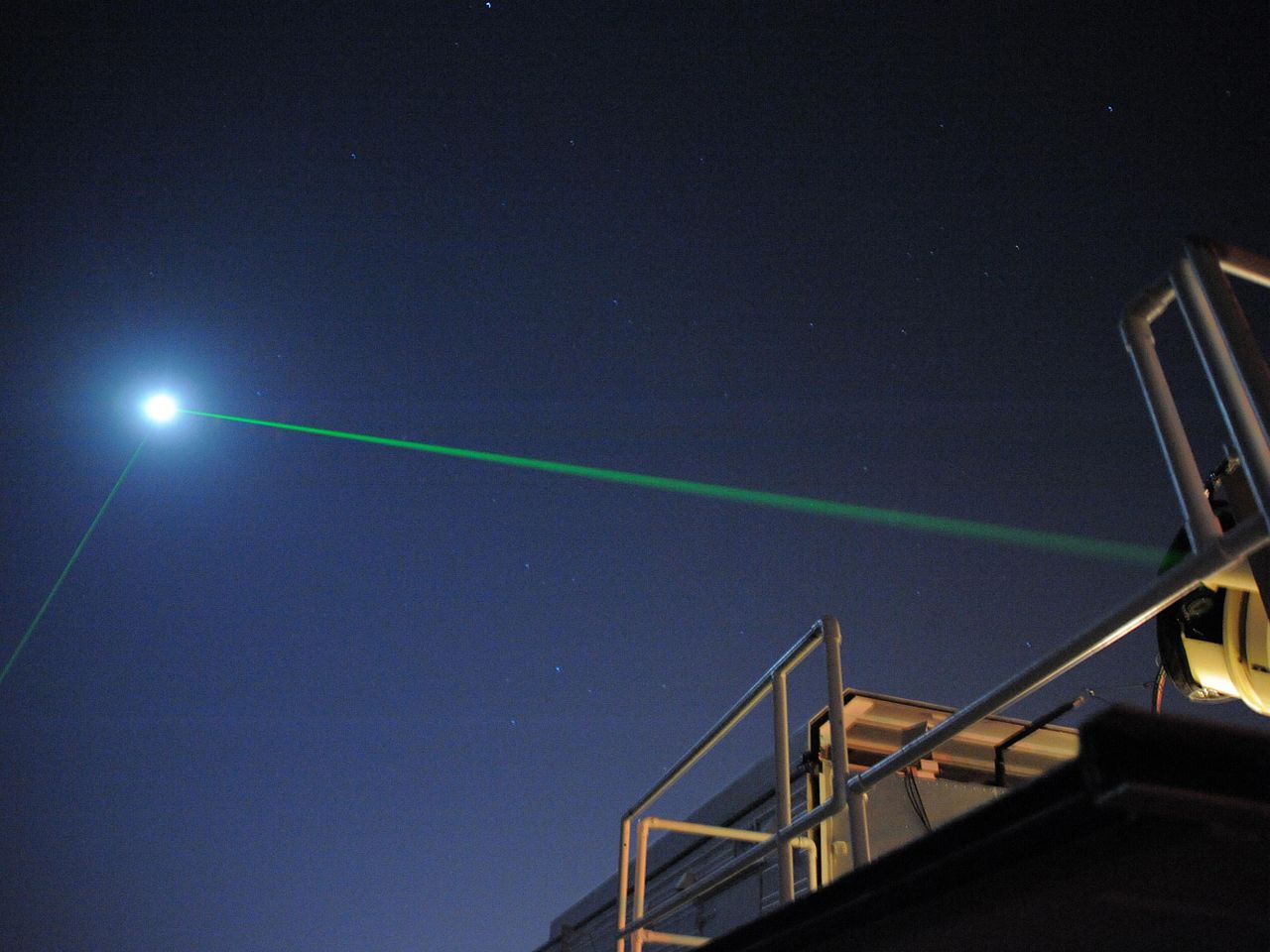

Figure 4: Lunar Ranging at Goddard Spaceflight Center. Image credit: NASA
What Do the Tests Imply?
General relativity passed all three tests described here with outstanding success. Physicists have speculated about alternate gravity theories to general relativity, but the three tests establish that all that remains of these alternate theories are the ones that adjust the predictions of general relativity only very, very slightly.
Thus, the predictions of general relativity relevant to establishing that the God of the Bible created our universe of matter, energy, space, and time stand more securely affirmed than ever before. No basis remains for doubting any of the theological conclusions dependent upon the reliability of general relativity.
Featured image: The MICROSCOPE Satellite Designed to Test the Equivalence Principle of General Relativity. Image credit: Centre National d’Études Spatiales (CNES)
- I discuss the space-time theorems in my book Why the Universe Is the Way It Is. In the fourth edition of my book The Creator and the Cosmos (release date early 2018), I demonstrate why the space-time theorems are valid both for classical general relativity and also for the extremely early moment in cosmic history where general relativity is modified by quantum mechanics (the quantum gravity era).
- T. A. Wagner et al., “Torsion-Balance Tests of the Weak Equivalence Principle,” Classical and Quantum Gravity 29 (August 15, 2012): id.184002, doi:10.1088/0264-9381/29/18/184002.
- James G. Williams, Slava G. Turyshev, and Dale H. Boggs, “Lunar Laser Ranging Tests of the Equivalence Principle,” Classical and Quantum Gravity 29 (August 15, 2012); id.184004, doi:10.1088/0264-9381/29/18/184004.
- Pierre Touboul et al., “The MICROSCOPE Mission: First Results of a Space Test of the Equivalence Principle,” preprint, submitted December 6, 2017, accepted for publication in Physical Review Letters, arXiv:1712.01176v2.
- Natasha A. Flowers, Casey Goodge, and Jay D. Tasson, “Superconducting-Gravimeter Tests of Local Lorentz Invariance,” Physical Review Letters 119 (November 16, 2017): id. 201101, doi:10.1103/PhysRevLett.119.201101.
- Adrien Bourgoin et al., “Lorentz Symmetry Violations from Matter-Gravity Couplings with Lunar Laser Ranging,” Physical Review Letters 119 (November 16, 2017): id. 201102, doi:10.1103/PhysRevLett.119.201102.
